ISYBOT - 5-536-B

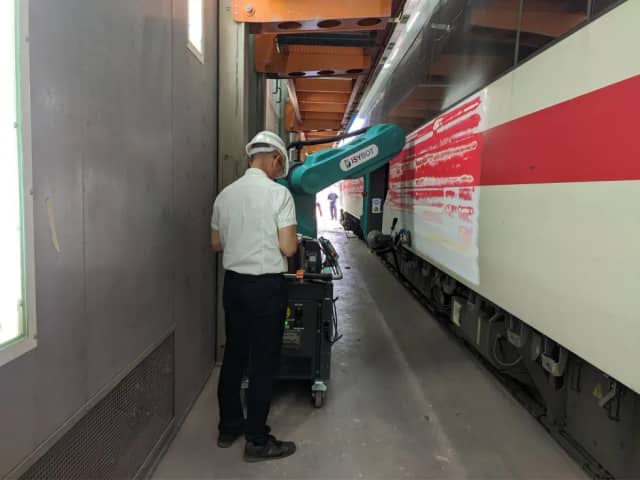

ISYBOT designs and makes collaborative robots, known as cobots, for finishing work in industry. It is based in Les Ulis, France. Its robots take over tiring, repetitive tasks such as grinding and sanding, so operators can spend time on skilled work.

The company says its cobots come from research at the CEA. It describes them as a way to make manual workstations more productive without changing the work area. The goal is to cut operator fatigue and raise output. Its slogan promises that customers can automate finishing tasks in less than half a day.

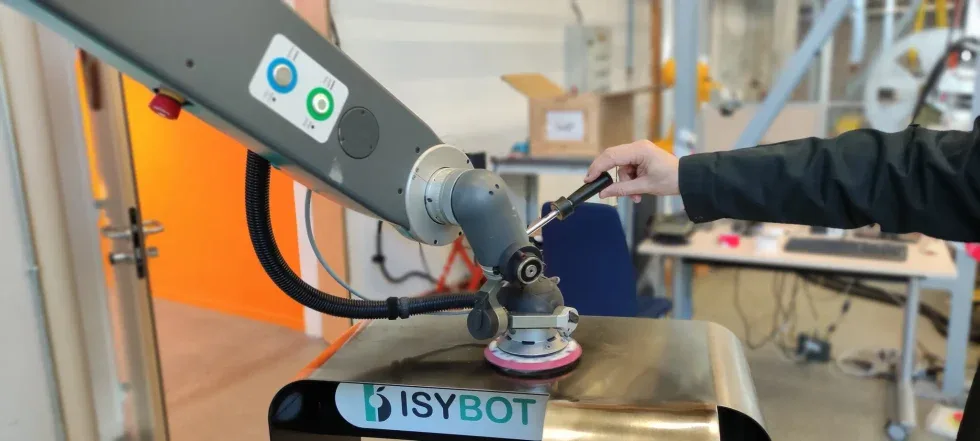

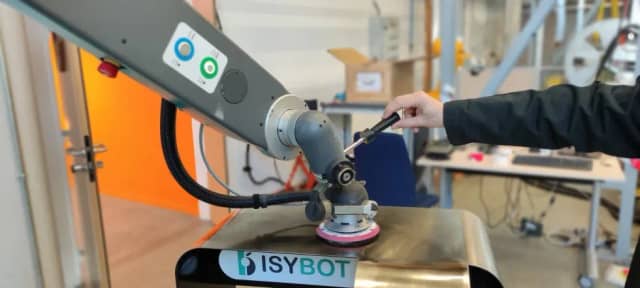

The main product is the SYB 3 cobot. It has a reach of 1.6 metres and carries a load of 10 kg. It runs on 230 volts at 16 amps and uses little power. It can be moved to where it is needed on the shop floor. A control panel stores the paths and process settings. Operators program it with an easy two-button method and need no special training.

The SYB 3 has four operating modes: assistance, restitution, parallelisation and remote control. It also gives fine control of pressure for a good finish, and it removes dust at the source. At its heart is a patented ball screw and cable actuator called SCA-B. The company says it has low inertia and low friction, and it controls force without sensors.

ISYBOT also offers a remote operation stick and an operating lease for customers who want to try a cobot before buying. It helps customers plan a cobotics project. Its website is available in French, English and German.

Services

• SYB 3 collaborative robot
• Grinding and sanding automation
• Remote operation stick
• Operating lease
• Cobotics project support
