Aero-Electric Connector Inc

Aero-Electric Connector is one of the brand names of Conesys, a privately held interconnect manufacturer headquartered in Torrance, California. The company traces its roots to 1983 and describes itself as a vertically integrated provider of circular and rectangular connectors, filter and transient protection connectors, mil-spec circular connectors, fiber optic termini, copper and fiber interconnect systems, specialty cable assemblies and application specific connectors.

Products

• Environmental and firewall-rated cylindrical connectors machined from aluminum, carbon steel, stainless steel and aluminum nickel bronze
• MIL-C-5015, MIL-C-26500, MIL-C-83723 Series III, MIL-C-26482 Series 2 and MIL-C-38999 Series I style connector families
• Front and rear release 5015 connectors and customer specific connectors under the J-Tech name
• EMI filter connectors and EMP transient suppression devices under the EMP Connectors name
• Fiber optic assemblies and customized cable assemblies
• Connectors and cable assemblies for the industrial market under Aero Industrial Products

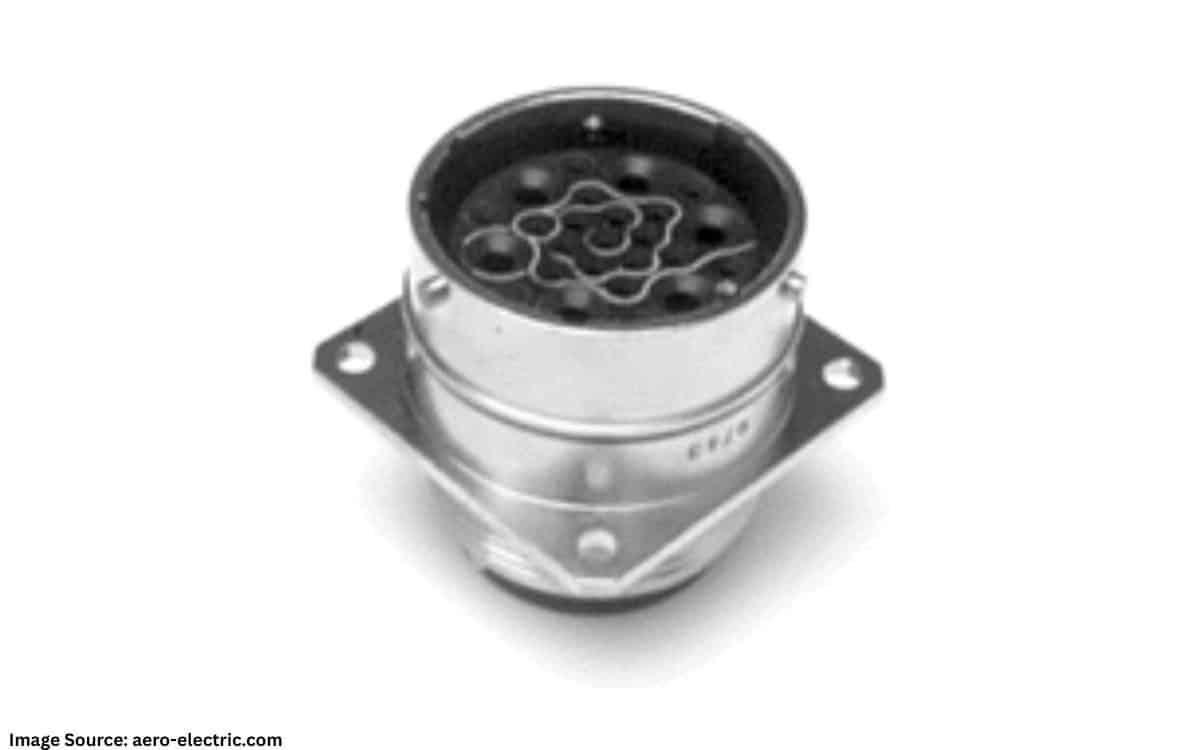

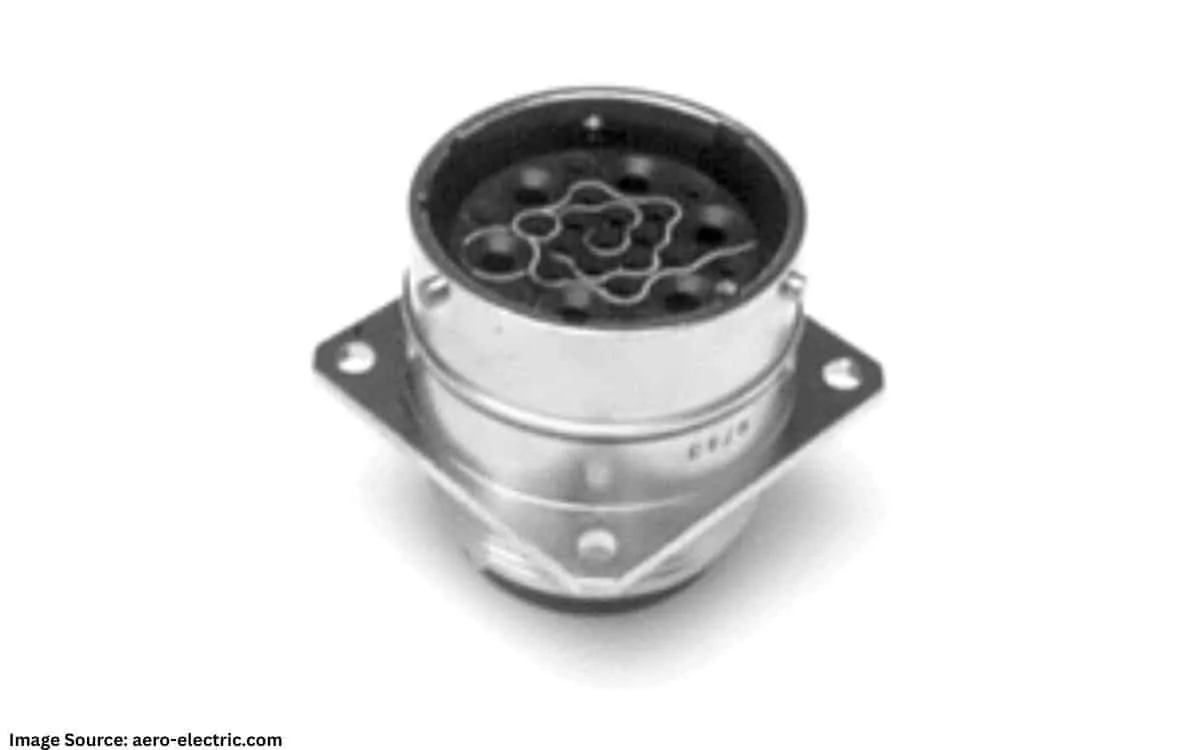

MIL-DTL-5015 Series III connectors

The threaded coupling, environmentally sealed MIL-DTL-5015 Series III connector with rear-removable crimp contacts was developed to replace the earlier solder type. It is intermateable and intermountable with the MIL-DTL-5015 Series I solder type, the MIL-DTL-83723 Series II crimp type and the MIL-DTL-5015 Series II front release type, which allows existing applications to be upgraded with little effort.

• Four receptacle mounting configurations: wall and box mounting square flange, cable connecting and jam nut receptacles with O-ring seals
• Two plug styles: a standard plug with a captivated coupling nut, and a self-locking, anti-decoupling plug that removes the need for safety wiring
• Eighty-eight insert arrangements per MIL-STD-1651, using 1 to 85 contacts in sizes 16, 12, 8, 4 and 0, for wire from 20 gauge to 0 gauge
• Aluminum shells in electroless nickel or olive drab cadmium, passivated stainless steel shells with standard or firewall-rated inserts, and carbon steel shells with firewall inserts
• Operating temperature ranges from minus 55 to plus 175 or plus 200 degrees Celsius, depending on class
• Closed-entry socket inserts, interfacial pin seals, triple wire sealing grommets and a single plastic tool for contact insertion and removal

Brands and locations

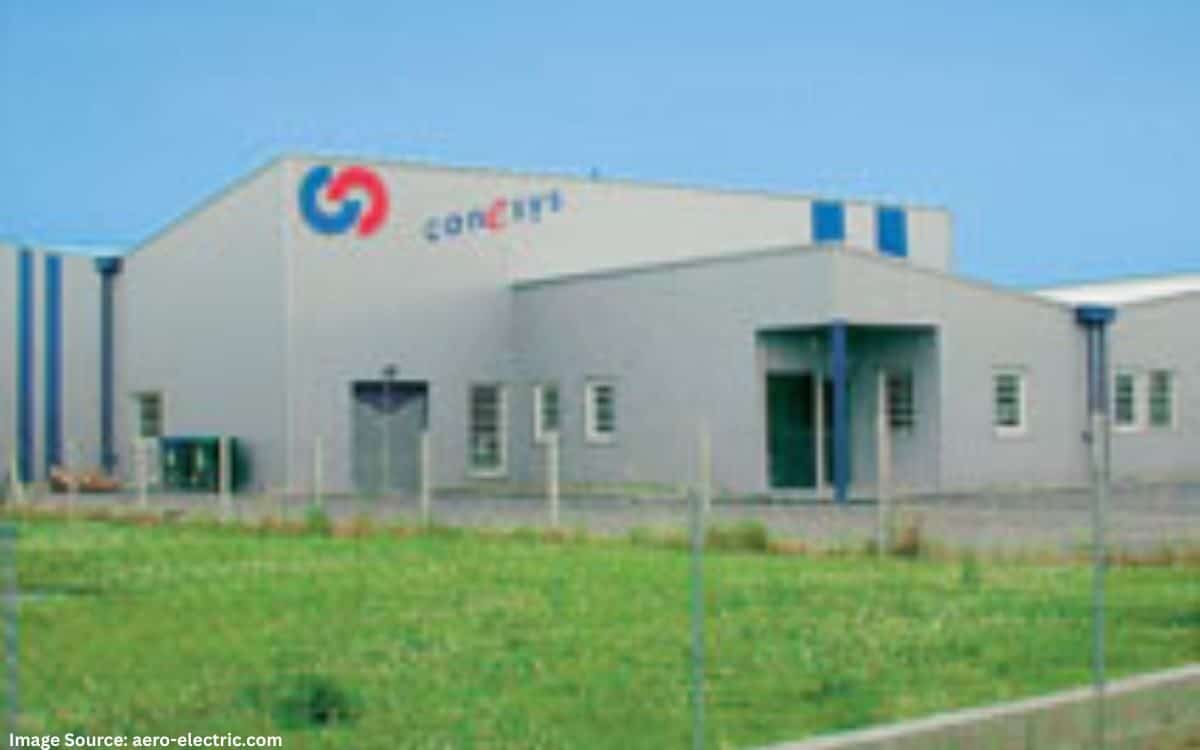

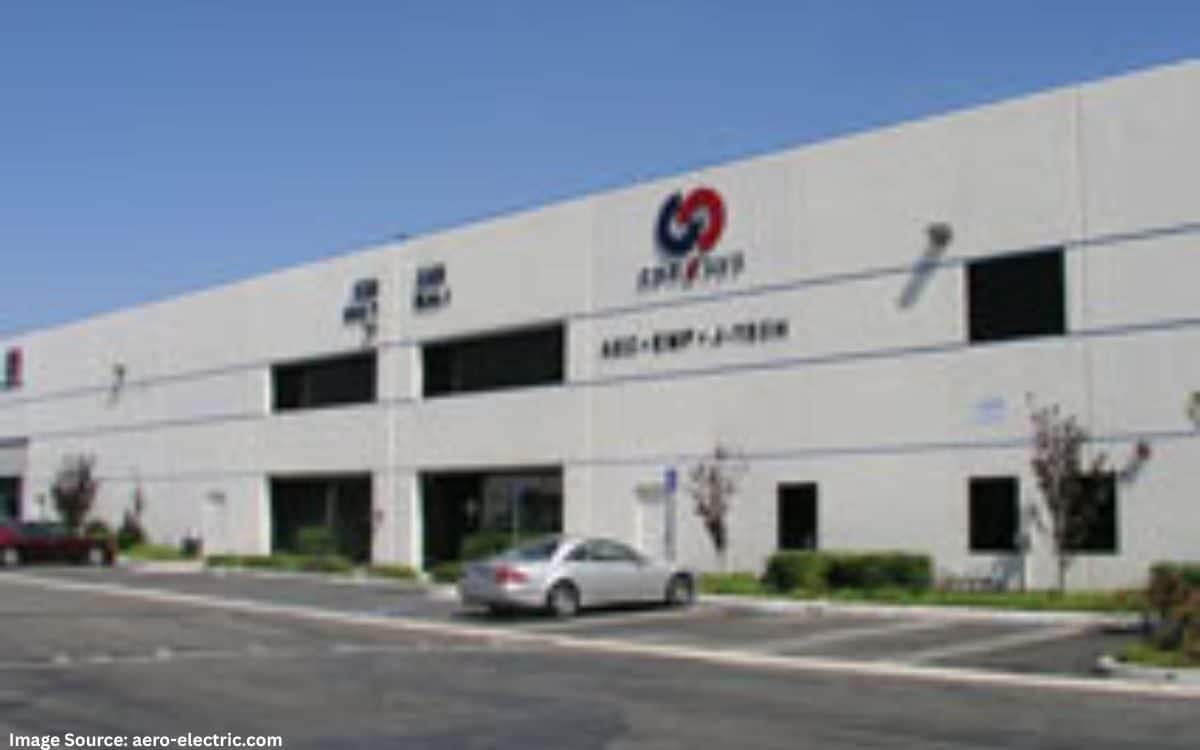

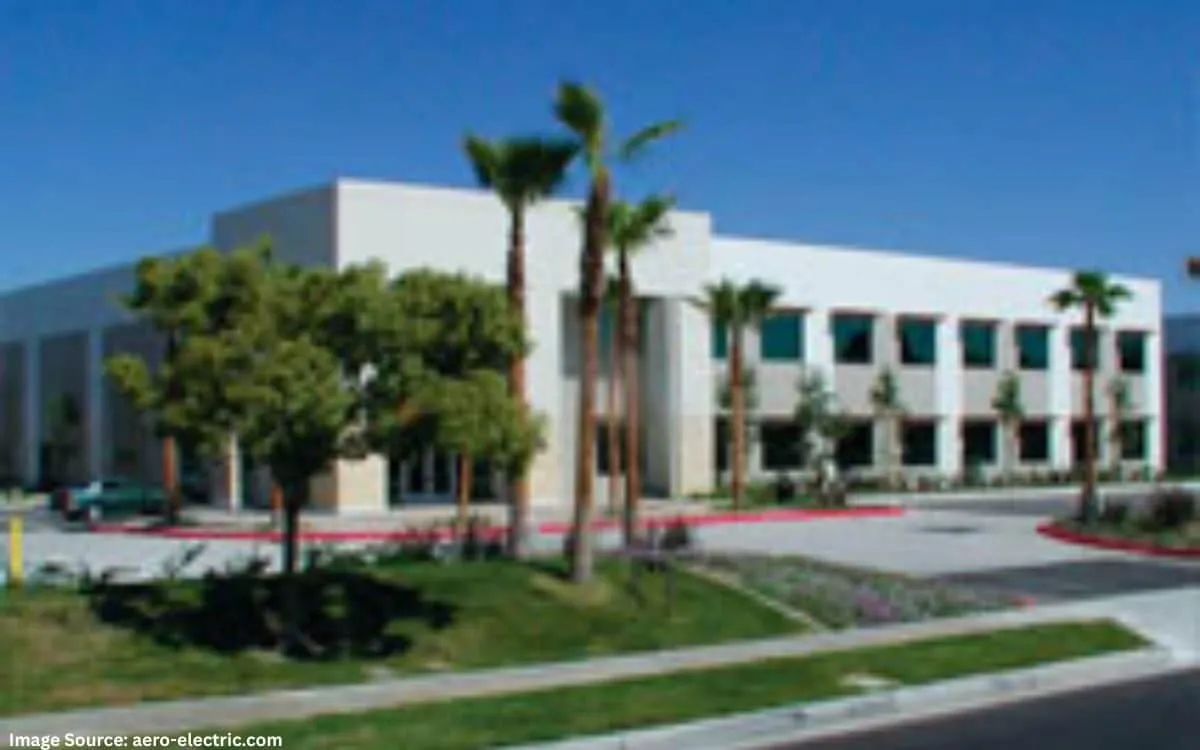

Conesys markets under the names Aero-Electric Connector, Aero Industrial Products, EMP Connectors, J-Tech, Conesys Europe and ATI-Interco. Manufacturing and assembly take place in Torrance, California and Tecate, Mexico, serving customers in the Americas and Asia. Conesys Europe in Toulouse, France and ATI-Interco in Courcouronnes, France serve customers in Europe, Africa and the Middle East. The group has roughly 1,000 employees worldwide.

Markets served

Military and aerospace, commercial aviation, business aviation, aircraft engines, marine, heavy equipment, rail and mass transit, geophysical, machine automation and motion control, medical equipment, general industrial and telecommunications.

Company facts

• ISO 9001 and AS9100 certified
• In house machining on double spindle, double turret CNC machines, and in house mold making
• Cellular manufacturing concepts used to control cost and cycle times
• Address: 548 Amapola Ave, Torrance, California
